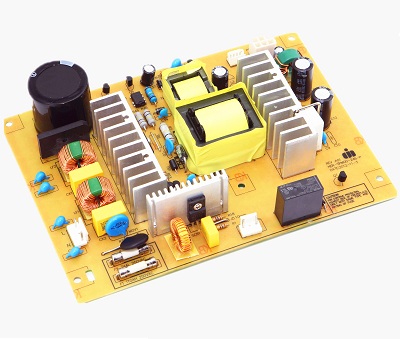

180W Open Frame

MOQ ： piece

Lead Time ： Days

Inquiry Start Order

Seller Support : Trade Authenticity Guaranteed & Accepting

Payment : L/C，T/T，Western Union, Money Gram, Credit Card, Paypal

Product details

Supply Ability

Warranty(Year)：1 Year

Product Specifications

Product Description

Products Name：180W Open Frame

Product Description：

Features:
· Universal AC Input (85-276VAC)
·High Power,efficiency 75%
·Green Power<0.25W
·Cross regulation +/-5%,.
·Lightning proof 2Kv

Input Specifications:

Input Voltage 100-240VAC, +/-15%
Input Current 3.0A Max at 85VAC
Input Frequency 47-63 Hz
Inrush Current ＜150A,@ 264VAC, Cold start
No load power ＜0.25W
AC Leakage Current ＜0.25mA@264VAC

Output Specifications:

Output Power 180W Max
Output channel quantity CH1：22V-4.5A +/-5%,
                                            CH2：15V-1.7A +/-5%,
                                            CH3：+5.0V-2.5A +/-3%,
                                            CH4：+3.9-0.1A +/-5%,
Load Regulation +/-5%,
Turn-on Delay Time <5S @ 90VAC
Short Circuit Protection Auto-recovery

Environmental Specifications:

Operation Temperature -10to 40℃, Convection
Storage Temperature -20℃ to +80℃
Relative Humidity 5% to 95%, non-condensing
Altitude 0 to 10000 ft
Safety Approval IEC60065, UL60065
Immunity EN61547
Emission EN55013
Weight ＜400g
